Brass Fittings

Brass Fitting

At Patel Precision Work, we trust in three things: creating quality items, having aggressive costs, and giving outstanding client benefit. As in India provider and driving maker of Brass Fittings that are plumbing necessities, we ensure that each item that surrenders our entryways are over to the most elevated industry measures. Other than creating standard-sized fittings, we can likewise produce your prints and you can rest guaranteed that what we convey will be strong, solid, and stand the trial of time. Pipes supply organizations the country over and in different parts of the globe rely on us for their metal pipe fitting needs. As we have been doing business since 1995, nobody knows the intricate details of the business as we do.

We lay extraordinary work on the bundling in order to guarantee to harm free conveyances. For this, we make utilization of fantastic material for wrapping our items. We get the sources of info just from the reliable merchants exhibit in the market. We know the significance of the crude materials and hence ensure that their quality will never be traded off. The prevalent quality metal fittings we offer are accessible in different

Patel Precision Work is outstanding for brilliant items, trustworthy administration, and aggressive valuing on a wide assortment of custom fittings and valve bodies fabricated to our client's secret outlines. Our items are utilized as a part of refrigeration, HVAC, normal or propane gas, apparatuses, welding, and numerous different applications. We can create work keeps running from 500 to 500,000 pieces to be conveyed as guaranteed and as planned. Try us out now

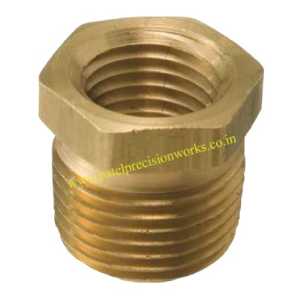

Brass Bushing Male-Female BSP Threads

heading bg
Brass Bushing Part Code Male Thread Female Thread Hex Length Flow Dia
BU-BP1 1/4" 1/8" 9/16" 0.75" 0.339"
BU-BP2 3/8" 1/8" 11/6" 0.75" 0.339"
BU-BP3 3/8" 1/4" 3/4" 0.75" 0.441"
BU-BP4 1/2" 1/8" 7/8" 1" 0.339"
BU-BP5 1/2" 1/4" 7/8" 1" 0.441"
BU-BP6 1/2" 3/8" 7/8" 1" 0.571"
BU-BP7 3/4" 1/8" 1-1/8" 1" 0.339"
BU-BP8 3/4" 1/4" 1-1/8" 1" 0.441"
BU-BP9 3/4" 3/8" 1-1/8" 1" 0.571"
BU-BP10 3/4" 1/2" 1-1/8" 1" 0.703"
BU-BP11 1" 3/8" 1-3/8" 1.31" 0.571"
BU-BP12 1" 1/2" 1-3/8" 1.31" 0.703"
BU-BP13 1" 3/4" 1-3/8" 1.31" 0.906"
Brass Bushing Male-Female NPT Threads
Part Code Male Thread Female Thread Hex Length Flow Dia
BU-NP1 1/4" 1/8" 9/16" 0.75" 0.339"
BU-NP2 3/8" 1/8" 11/6" 0.75" 0.339"
BU-NP3 3/8" 1/4" 3/4" 0.75" 0.441"
BU-NP4 1/2" 1/8" 7/8" 1" 0.339"
BU-NP5 1/2" 1/4" 7/8" 1" 0.441"
BU-NP6 1/2" 3/8" 7/8" 1" 0.571"
BU-NP7 3/4" 1/8" 1-1/8" 1" 0.339"
BU-NP8 3/4" 1/4" 1-1/8" 1" 0.441"
BU-NP9 3/4" 3/8" 1-1/8" 1" 0.571"
BU-NP10 3/4" 1/2" 1-1/8" 1" 0.703"
BU-NP11 1" 3/8" 1-3/8" 1.31" 0.571"
BU-NP12 1" 1/2" 1-3/8" 1.31" 0.703"
BU-NP13 1" 3/4" 1-3/8" 1.31" 0.906"

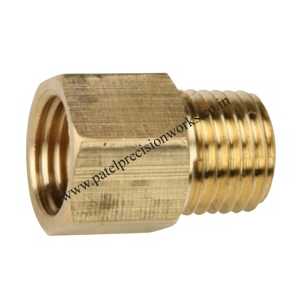

Brass Male-Female Connector-Equal & Reducing BSP Threads

heading bg
Equal & Reducing Part Code Male Thread Female Thread Hex Length Flow Dia
ER-BP1 1/4" 1/8" 3/4" 1.06" 0.22"
ER-BP2 3/8" 1/8" 7/8" 1.1" 0.22"
ER-BP3 3/8" 1/4" 7/8" 1.25" 0.314"
ER-BP4 1/2" 1/4" 1" 1.47" 0.314"
ER-BP5 1/2" 3/8" 1-1/16" 1.47" 0.44"
ER-BP6 3/4" 3/8" 1-3/8" 1.5" 0.44"
ER-BP7 3/4" 1/2" 1-3/8" 1.5" 0.564"
ER-BP8 1" 1/2" 1-3/8" 1.69" 0.703"
ER-BP9 1" 3/4" 1-3/8" 1.69" 0.906"
Brass Male-Female Connector-Equal & Reducing NPT Threads
Part Code Male Thread Female Thread Hex Length Flow Dia
ER-NP1 1/4" 1/8" 3/4" 1.06" 0.22"
ER-NP2 3/8" 1/8" 7/8" 1.1" 0.22"
ER-NP3 3/8" 1/4" 7/8" 1.25" 0.314"
ER-NP4 1/2" 1/4" 1" 1.47" 0.314"
ER-NP5 1/2" 3/8" 1-1/16" 1.47" 0.44"
ER-NP6 3/4" 3/8" 1-3/8" 1.5" 0.44"
ER-NP7 3/4" 1/2" 1-3/8" 1.5" 0.564"
ER-NP8 1" 1/2" 1-3/8" 1.69" 0.703"
ER-NP9 1" 3/4" 1-3/8" 1.69" 0.906"

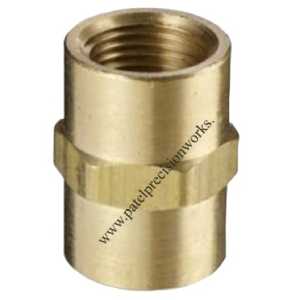

Brass Female Equal Connector Coupling BSP Threads

heading bg
Female Equal Coupling Part Code Female Thread Hex Length Flow Dia
EC-BP1 1/8" 9/16" 0.75" 0.339"
EC-BP2 1/4" 3/4" 1.12" 0.441"
EC-BP3 3/8" 7/8" 1.12" 0.517"
EC-BP4 1/2" 1-1/16" 1.19" 0.703"
EC-BP5 3/4" 1-3/8" 1.19" 0.906"
EC-BP6 1" 1-3/8" 1.35" 1.16"
Part Code Female Thread Hex Length Flow Dia
EC-NP1 1/8" 9/16" 0.75" 0.339"
EC-NP2 1/4" 3/4" 1.12" 0.441"
EC-NP3 3/8" 7/8" 1.12" 0.517"
EC-NP4 1/2" 1-1/16" 1.19" 0.703"
EC-NP5 3/4" 1-3/8" 1.19" 0.906"
EC-NP6 1" 1-3/8" 1.35" 1.16"

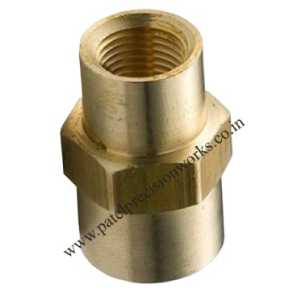

Brass Female Reducer Connector- Coupling BSP Threads

heading bg
Female Reducer Coupling Part Code Female Thread Female Thread Hex Length Flow Dia
RC-BP1 1/4" 1/8" 3/4" 0.97" 0.339"
RC-BP2 3/8" 1/4" 7/8" 1.16" 0.441"
RC-BP3 1/2" 1/4" 1-1/16" 1.28" 0.441"
RC-BP4 1/2" 3/8" 1-1/16" 1.38" 0.517"
RC-BP5 3/4" 3/8" 1-1/16" 1.38" 0.517"
RC-BP6 3/4" 1/2" 1-3/8" 1.38" 0.703"
RC-BP7 1" 1/2" 1-3/8" 1.5" 0.703"
RC-BP8 1" 3/4" 1-3/8" 1.5" 0.906"
Brass Female Reducer Connector- Coupling NPT Threads
Part Code Female Thread Female Thread Hex Length Flow Dia
RC-NP1 1/4" 1/8" 3/4" 0.97" 0.339"
RC-NP2 3/8" 1/4" 7/8" 1.16" 0.441"
RC-NP3 1/2" 1/4" 1-1/16" 1.28" 0.441"
RC-NP4 1/2" 3/8" 1-1/16" 1.38" 0.517"
RC-NP5 3/4" 3/8" 1-1/16" 1.38" 0.517"
RC-NP6 3/4" 1/2" 1-3/8" 1.38" 0.703"
RC-NP7 1" 1/2" 1-3/8" 1.5" 0.703"
RC-NP8 1" 3/4" 1-3/8" 1.5" 0.906"

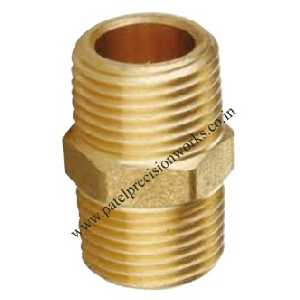

Brass Male Connector- Equal Hex Nipple BSP Threads

heading bg
Male Hex Nipple Part Code Male Thread Hex Length Flow Dia
HN-BP1 1/8" 7/16" 0.97" 0.221"
HN-BP2 1/4" 9/16" 1.38" 0.314"
HN-BP3 3/8" 11/16" 1.41" 0.44"
HN-BP4 1/2" 7/8" 1.81" 0.564"
HN-BP5 3/4" 1-1/16" 1.81" 0.752"
HN-BP6 1" 1-3/8" 1.81" 1.906"
Brass Male Connector- Equal Hex Nipple NPT Threads
Part Code Female Thread Hex Length Flow Dia
HN-NP1 1/8" 7/16" 0.97" 0.221"
HN-NP2 1/4" 9/16" 1.38" 0.314"
HN-NP3 3/8" 11/16" 1.41" 0.44"
HN-NP4 1/2" 7/8" 1.81" 0.564"
HN-NP5 3/4" 1-1/16" 1.81" 0.752"
HN-NP6 1" 1-3/8" 1.81" 1.906"

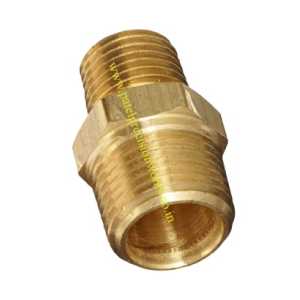

Brass Male Connector- Hex Nipple Reducer BSP Threads

heading bg
Male Hex Nipple Reducer Part Code Male Thread Male Thread Hex Length Flow Dia
HNR-BP1 1/4" 1/8" 9/16" 1.19" 0.22"
HNR-BP2 3/8" 1/8" 11/16" 1.22" 0.22"
HNR-BP3 3/8" 1/4" 11/16" 1.41" 0.314"
HNR-BP4 1/2" 1/4" 7/18" 1.62" 0.314"
HNR-BP5 1/2" 3/8" 7/18" 1.62" 0.44"
HNR-BP6 3/4" 3/8" 1.1/16" 1.80" 0.44"
HNR-BP7 3/4" 1/2" 1.1/16" 1.80" 0.564"
HNR-BP8 1" 1/2" 1-3/8" 1.80" 0.564"
HNR-BP9 1" 3/4" 1-3/8" 1.80" 0.752"
Brass Male Connector - Hex Nipple Reducer NPT Threads
HNR-NP1 1/4" 1/8" 9/16" 1.19" 0.22"
HNR-NP2 3/8" 1/8" 11/16" 1.22" 0.22"
HNR-NP3 3/8" 1/4" 11/16" 1.41" 0.314"
HNR-NP4 1/2" 1/4" 7/18" 1.62" 0.314"
HNR-NP5 1/2" 3/8" 7/18" 1.62" 0.44"
HNR-NP6 3/4" 3/8" 1.1/16" 1.80" 0.44"
HNR-NP7 3/4" 1/2" 1.1/16" 1.80" 0.564"
HNR-NP8 1" 1/2" 1-3/8" 1.80" 0.564"
HNR-NP9 1" 3/4" 1-3/8" 1.80" 0.752"
